MM335

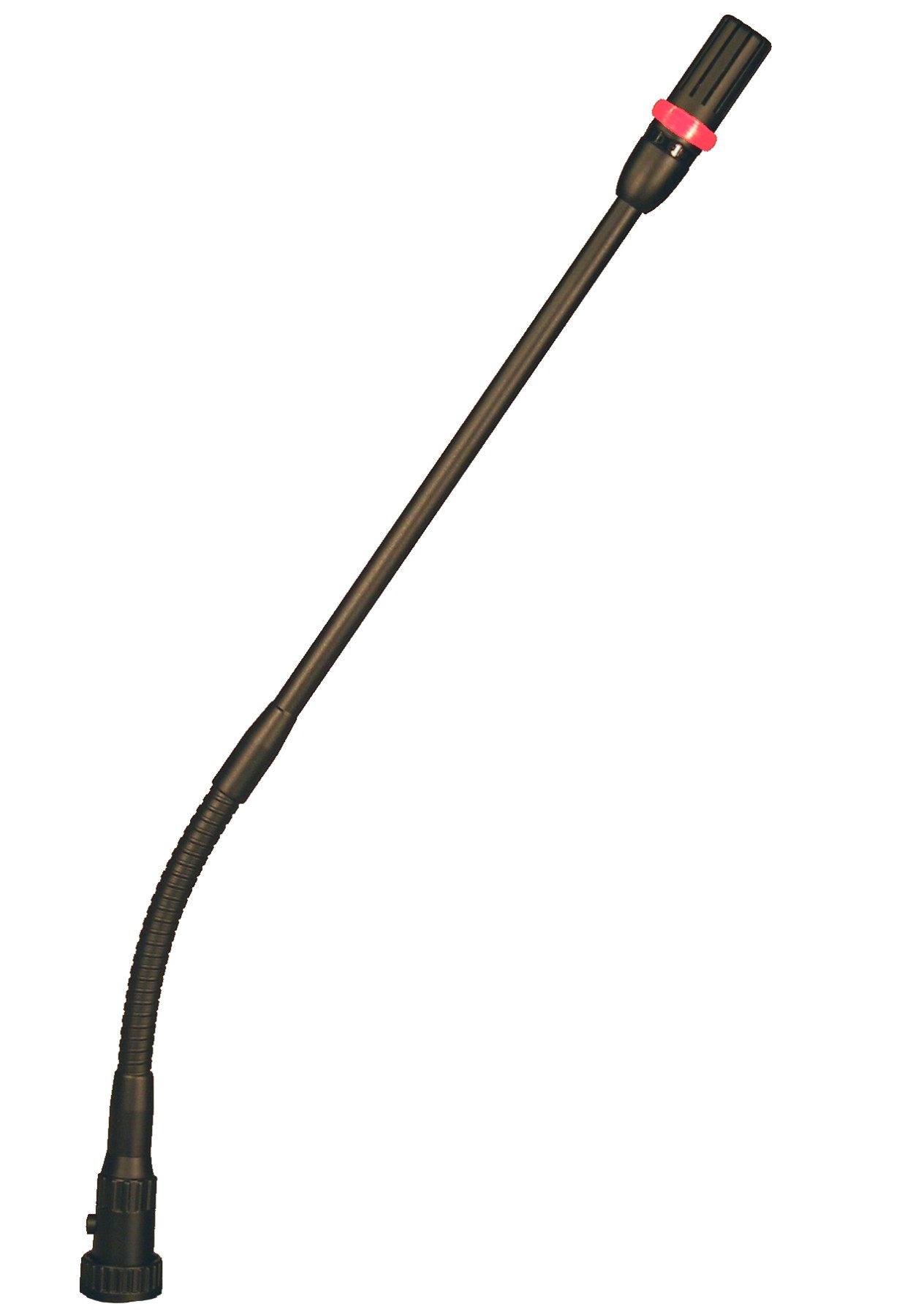

The MM335 is a miniature conference microphone of excellent performance with brilliant voice and high intelligibility. It's bright indicator ring provides good visibility, even in daylight. A special design of head reduces any 'pop effect' and improves the rejection of wind noise. The strong, all metal housing with split gooseneck and integrated DIN connector ensures long and easy use.
Frequency response:
Specifications
Type
|
electret condenser
|
Frequency response
|
100-20 000 Hz
|
Directivity
|
cardioid
|
Sensitivity (free field, no load)
|
7 mV/Pa +/- 3 dB
|
Impedance
|
680 Ohm
|
Max. SPL
|
130 dB
|
Noise level
|
< 34 dB
|
Max. operating voltage
|
10 V
|
Current consumption
|
0.5 mA
|
LED current
|
20 mA (50 mA max.)
|
Connector
|
7-pin DIN 45329
|
Pin connection
|
1-GND mic., 2-housing, 3-mic out, 4-NC, 5-NC, 6-LED common, 7- +LED
|
Length
|
360 mm
|
Nett weight
|
90 g
|
Colour
|
matt black
|
Accessory
|
windscreen W335 (not included)
|
|
Polar pattern:
MM335 is also available with two colour indicator ring - MM335RG.
|
