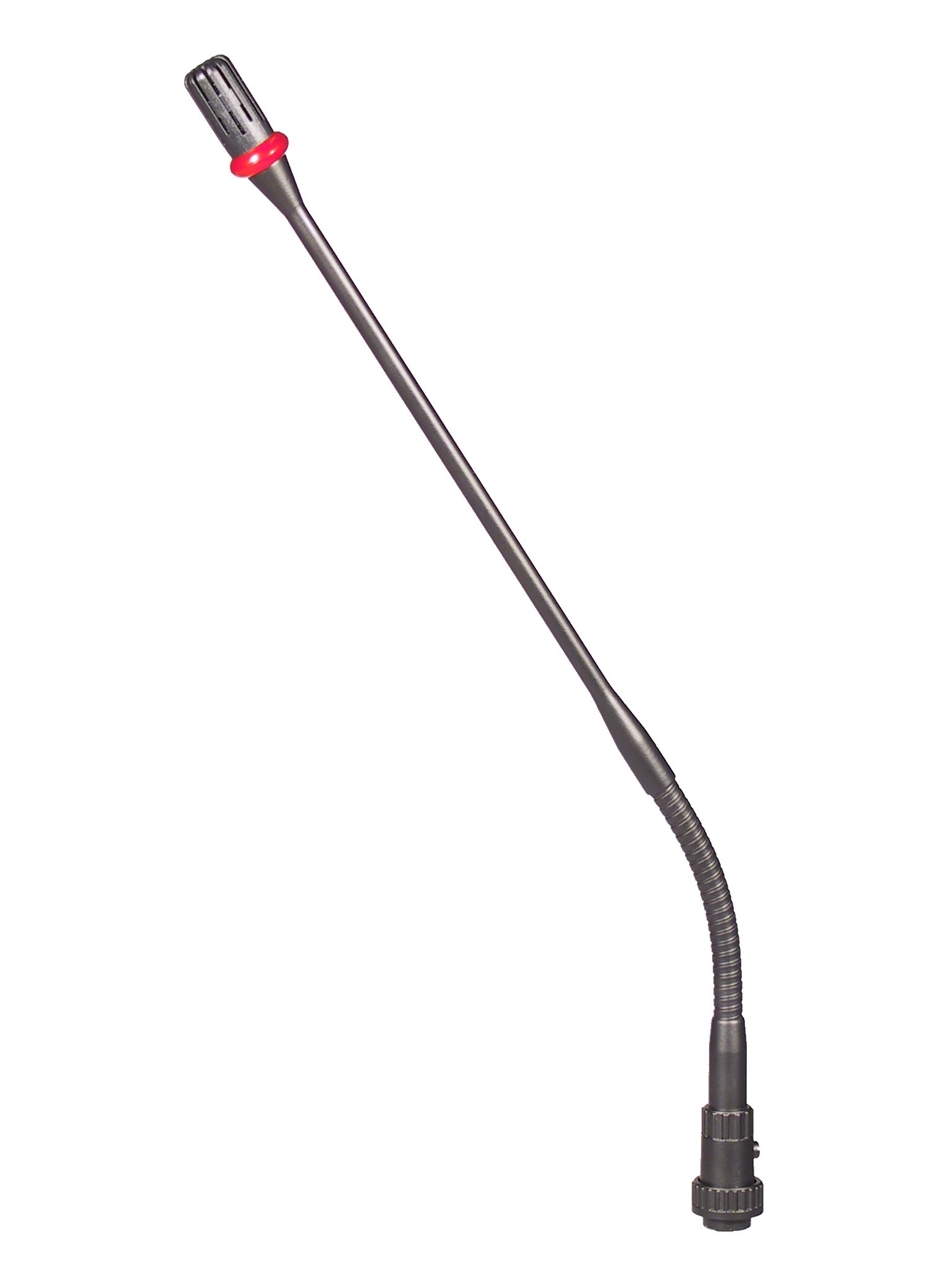

MM345
The MM345 is a miniature conference microphone with excellent performance. It's extremely bright illuminant ring provides good visibility even in daylight. Elegant design with a robust, all metal housing makes it the ideal choice for any conference system.
Frequency response:
Specifications
|
Type
|
electret condenser
|
|
Frequency response
|
100-20 000 Hz
|
|
Directivity
|
cardioid
|
|
Sensitivity (free field, no load)
|
7 mV/Pa +/- 3 dB
|
|
Impedance
|
680 Ohm
|
|
Max. SPL
|
130 dB
|
|
Noise level
|
< 34 dB
|
|
Max. operating voltage
|
10 V
|
|
Current consumption
|
0.5 mA
|
|
LED current
|
20 mA (50 mA max.)
|
|
Connector
|
7-pin DIN 45329
|
|
Pin connection
|
1-GND mic., 2-housing, 3-mic out, 4-NC, 5-NC, 6-LED common, 7- +LED
|
|
Length
|
360 mm
|
|
Nett weight
|
90 g
|
|
Colour
|
matt black
|
|
Accessory
|
windscreen
|
|
Polar pattern:

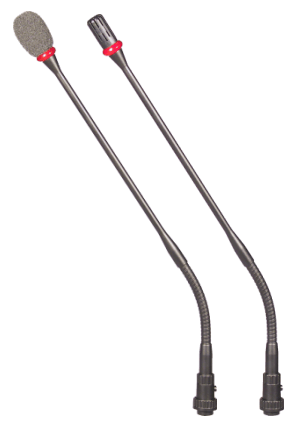

MM345 is also available with two colour indicator ring - MM345RG.
|
