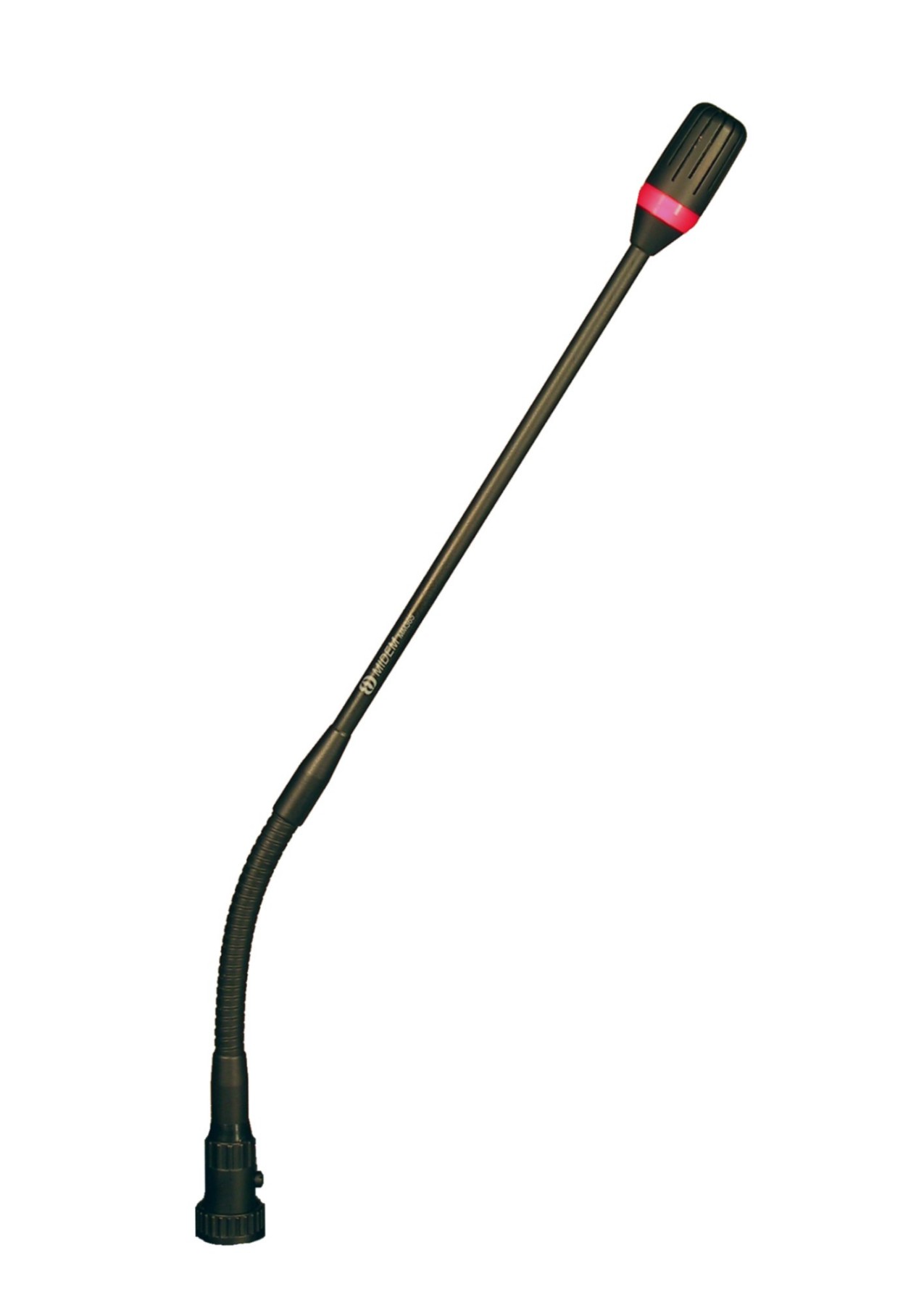

MIDEM MM365 electret condenser conference microphone

MM365

The MM365 is a conference microphone with great acoustic performance. It's large diaphragm cartridge offers excellent S/N ratio, directivity and frequency response and yet it is shock mounted in a small and unobtrusive, but robust, all metal housing. Extremely bright illumination ring, fine styling and excellent performance makes it the best choice for top class conference systems.

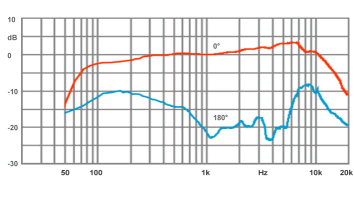

Frequency response:

Specifications

Type	electret condenser
Frequency response	60 - 20 000 Hz
Directivity	cardioid
Sensitivity (free field, no load)	5 mV/Pa
Impedance	1 KOhm
Max. SPL	130 dB
Noise level	< 24 dB
Max. operating voltage	10 V
Current consumption	0.5 mA
LED current	20 mA (50 mA max.)
Connector	7-pin DIN 45329
Pin connection	1-GND mic., 2-housing, 3-mic out, 4-NC, 5-NC, 6-LED common, 7- +LED
Length	360 mm
Nett weight	95 g
Colour	matt black
Accessory	windscreen

Polar pattern:

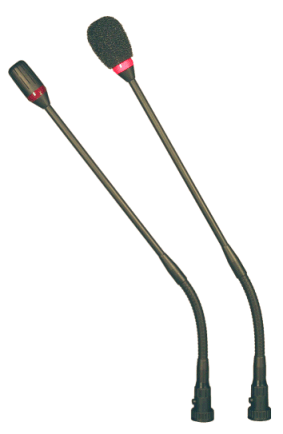

MM365 is also available with two colour indicator ring - MM365RG.
